Samples obtained from mining companies will be sent to J&C Bachmann, Pforzheim, Germany technical laboratory for validation. Measurements are taken using J&C Bachmann XRF UI software.
To present the material to the TEXAS system the samples were individually loaded into plastic containers. This ensures the sample material is not contaminated while closed. The selected container material does not influence the measurement results.

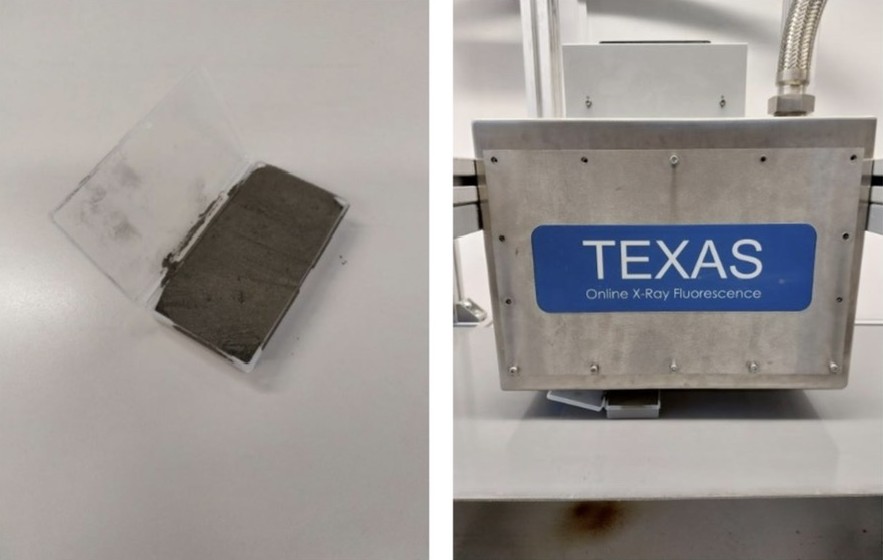

Figure 1: Sample loaded into sample holder (left) and placed under TEXAS device for measurement (right).
Measurements are performed using JCB's proprietary XRF UI software, which allows the user to adjust the measurement settings and settings of the individual components, start and stop a measurement, and perform energy and output calibrations.

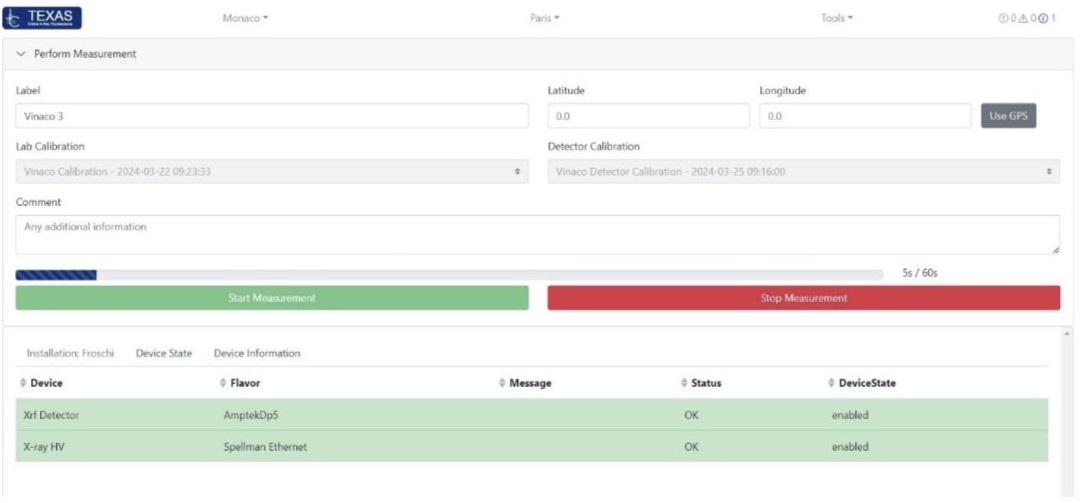

Figure 2: Screenshot XRF User Interface while a measurement is in progress.
JCB Vina will carry out Site Inspection during contract award to determine and finalise with end user on location of the sled to be mounted (for Texas XRF) or brackets to be installed against piping or slurry tanks (for Florida XRF). Similarly, all engineering details pertaining to hardware to be discussed and confirmed.

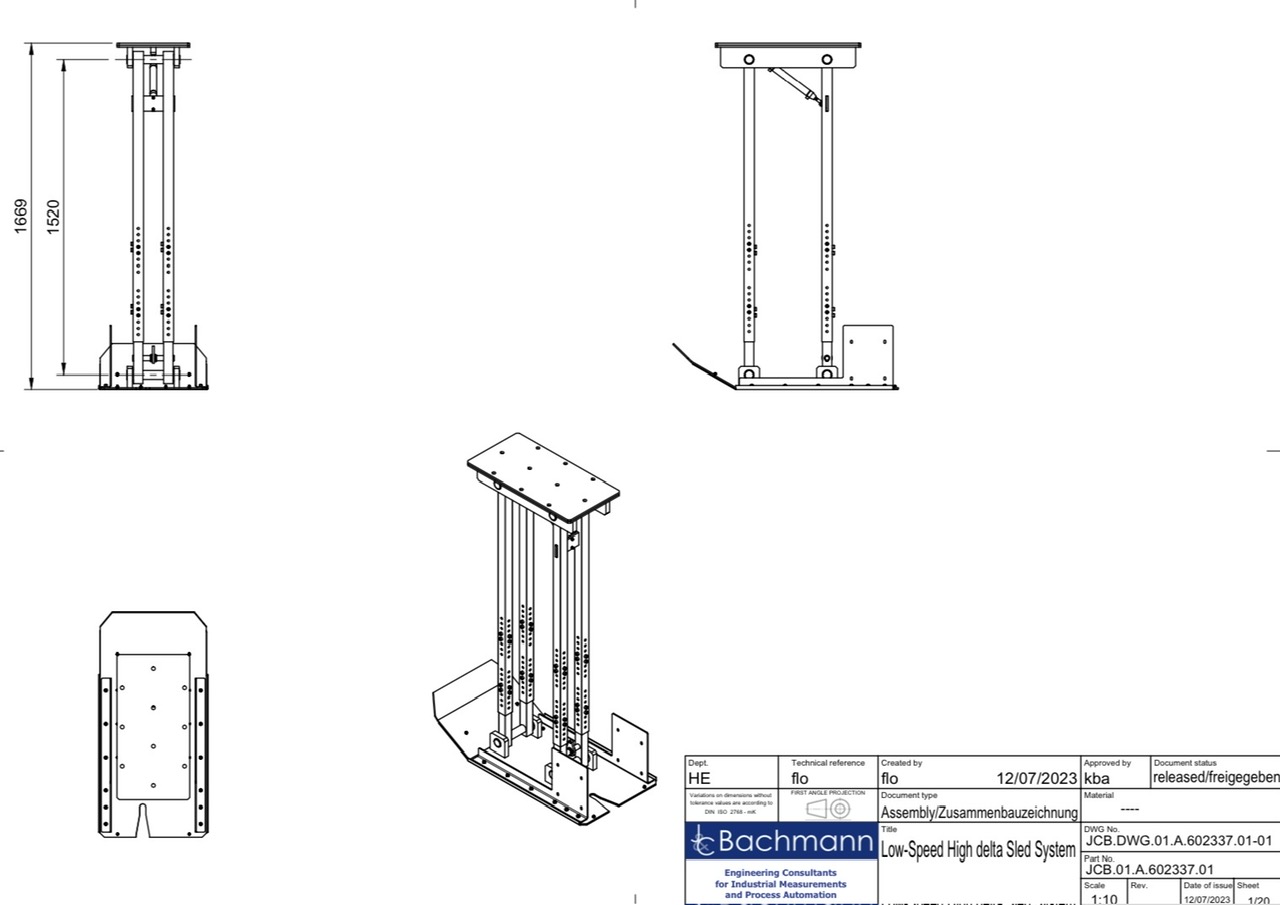

Figure 3: Detailed Engineering of Sled
JCB Vina will Supervise the installation of Texas XRF and Florida XRF with end users technicians and engineers and execute their Commissioning before handover to end users.

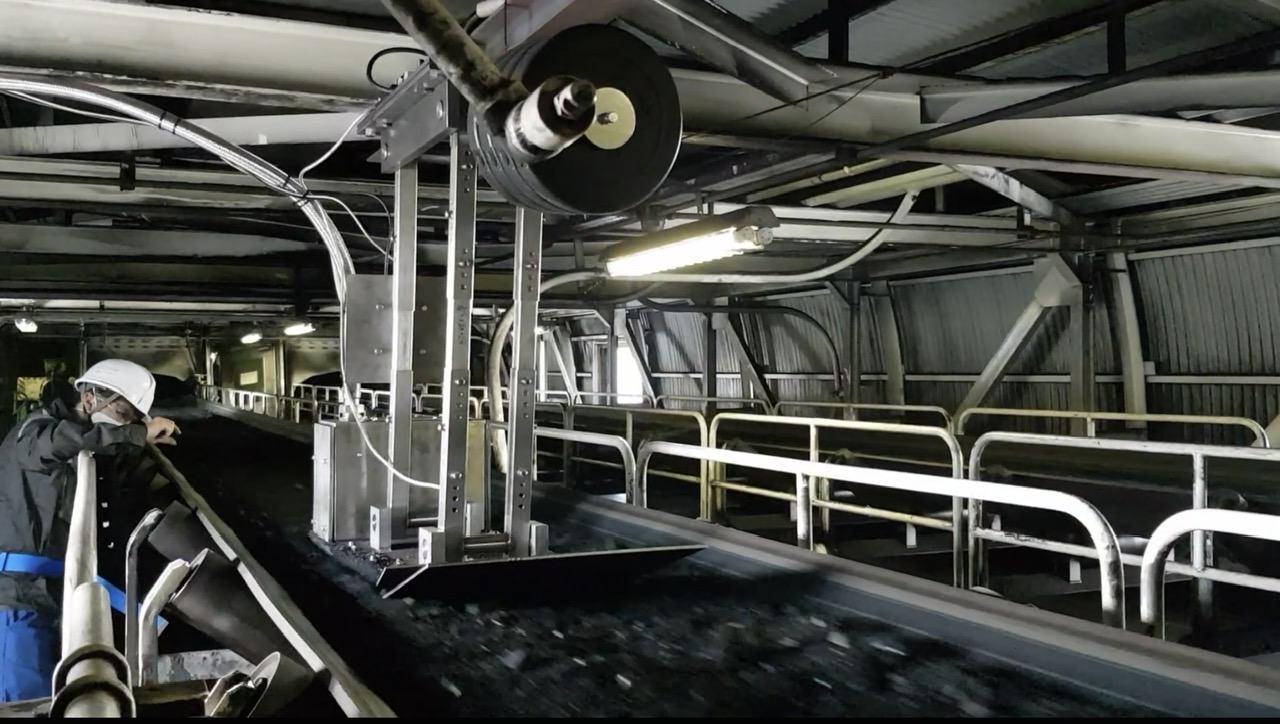

Figure 4: Site Supervision & Commissioning
Training JCB Vina will train end users and any appointed subcontractors on the operation and maintenance of Texas XRF and Florida XRF after Commissioning.
JCB Vina will provide Annual Service on Texas XRF and Florida XRF at end user sites upon final confirmation on the frequency of the servicing. Servicing include XRF Detector, High Voltage Power Supply, Cooling Systems, Data Communications and Remote Calibration with J&C Bachmann XRF UI.
Các mẫu thu được từ các công ty khai thác sẽ được gửi đến phòng thí nghiệm kỹ thuật của J&C Bachmann tại Pforzheim, Đức để xác minh. Các phép đo được thực hiện bằng phần mềm J&C Bachmann XRF UI.
Để trình bày vật liệu cho hệ thống TEXAS, các mẫu được nạp riêng lẻ vào các hộp nhựa. Việc này đảm bảo vật liệu mẫu không bị nhiễm bẩn khi đóng kín. Chất liệu của hộp đựng được chọn lọc sao cho không ảnh hưởng đến kết quả đo.
Hình 1: Mẫu được nạp vào giá đỡ mẫu (trái) và được đặt dưới thiết bị TEXAS để đo (phải).
Đo lường được thực hiện bằng phần mềm giao diện XRF độc quyền của JCB, cho phép người dùng điều chỉnh các thiết lập đo lường và cài đặt của từng thành phần riêng lẻ, bắt đầu và dừng quá trình đo, cũng như thực hiện hiệu chuẩn năng lượng và đầu ra.
Hình 2: Giao diện người dùng XRF trong khi quá trình đo đang diễn ra.
JCB Vina sẽ tiến hành khảo sát hiện trường trong quá trình ký kết hợp đồng để xác định và thống nhất với người dùng cuối về vị trí lắp đặt bệ đỡ (cho Texas XRF) hoặc giá đỡ để gắn vào đường ống hoặc bể chứa bùn (cho Florida XRF). Tương tự, tất cả các chi tiết kỹ thuật liên quan đến phần cứng sẽ được thảo luận và xác nhận.
Hình 3: ….
JCB Vina sẽ giám sát quá trình lắp đặt các thiết bị Texas XRF và Florida XRF cùng với các kỹ thuật viên và kỹ sư của người dùng cuối, và thực hiện công tác vận hành thử trước khi bàn giao cho người dùng.
Hình 4: ….
JCB Vina sẽ đào tạo người dùng cuối và bất kỳ nhà thầu phụ nào được chỉ định về cách vận hành và bảo trì thiết bị Texas XRF và Florida XRF sau khi hoàn tất vận hành thử.
JCB Vina sẽ cung cấp dịch vụ bảo trì hằng năm cho các thiết bị Texas XRF và Florida XRF tại cơ sở của người dùng cuối sau khi xác nhận cuối cùng về tần suất bảo trì. Dịch vụ bao gồm: bộ dò XRF, bộ nguồn cao áp, hệ thống làm mát, truyền dữ liệu và hiệu chuẩn từ xa bằng
